Densifying & pre-conditioning
Plastic Agglomerator
Densifies soft PE, PP, and LDPE films, bags, and woven sacks before pelletizing through frictional heating and mechanical compaction.
01 — Working principle
Turn light film into stable, compact feedstock.
Fast-rotating blades cut, mix, and heat the plastic by friction. The softened material compacts and forms small granules or lumps after cooling, making downstream feeding more stable.
- 01Load
Loose flexible plastic enters the working chamber.
- 02Cut & mix
Fast blades continuously reduce and circulate the material.
- 03Heat & compact
Frictional heat softens and densifies the plastic.
- 04Cool & discharge
Compact granules or lumps leave for pelletizing.
Built for the task
Focused engineering, clearly explained.
Cutting and mixing in one chamber
Frictional heating
Mechanical densification
Pre-conditions film for pelletizing
02 — Technical parameters
Compare the available machine sizes.
Use these published models as an initial reference. Final selection depends on the material, input size, and required output.
Request configuration guidance ↗| Model | KL-100 | KL-200 | KL-300 | KL-500 | KL-800 | KL-1500 |
|---|---|---|---|---|---|---|
| Power (kW) | 22 / 37 | 45 / 55 | 75 | 90 | 110 / 132 | 160 / 185 |
| Power (HP) | 30 / 50 | 60 / 75 | 100 | 120 | 150 / 180 | 215 / 250 |
| Volume (L) | 100 | 200 | 300 | 500 | 800 | 1500 |
| Capacity (kg/hr) | 50–80 | 100–150 | 150–200 | 300–400 | 500–600 | 900–1200 |
Published values are reference data. Final specifications depend on the selected configuration and project conditions.
Power (kW)
- KL-100
- 22 / 37
- KL-200
- 45 / 55
- KL-300
- 75
- KL-500
- 90
- KL-800
- 110 / 132
- KL-1500
- 160 / 185
Power (HP)
- KL-100
- 30 / 50
- KL-200
- 60 / 75
- KL-300
- 100
- KL-500
- 120
- KL-800
- 150 / 180
- KL-1500
- 215 / 250
Volume (L)
- KL-100
- 100
- KL-200
- 200
- KL-300
- 300
- KL-500
- 500
- KL-800
- 800
- KL-1500
- 1500
Capacity (kg/hr)
- KL-100
- 50–80
- KL-200
- 100–150
- KL-300
- 150–200
- KL-500
- 300–400
- KL-800
- 500–600
- KL-1500
- 900–1200

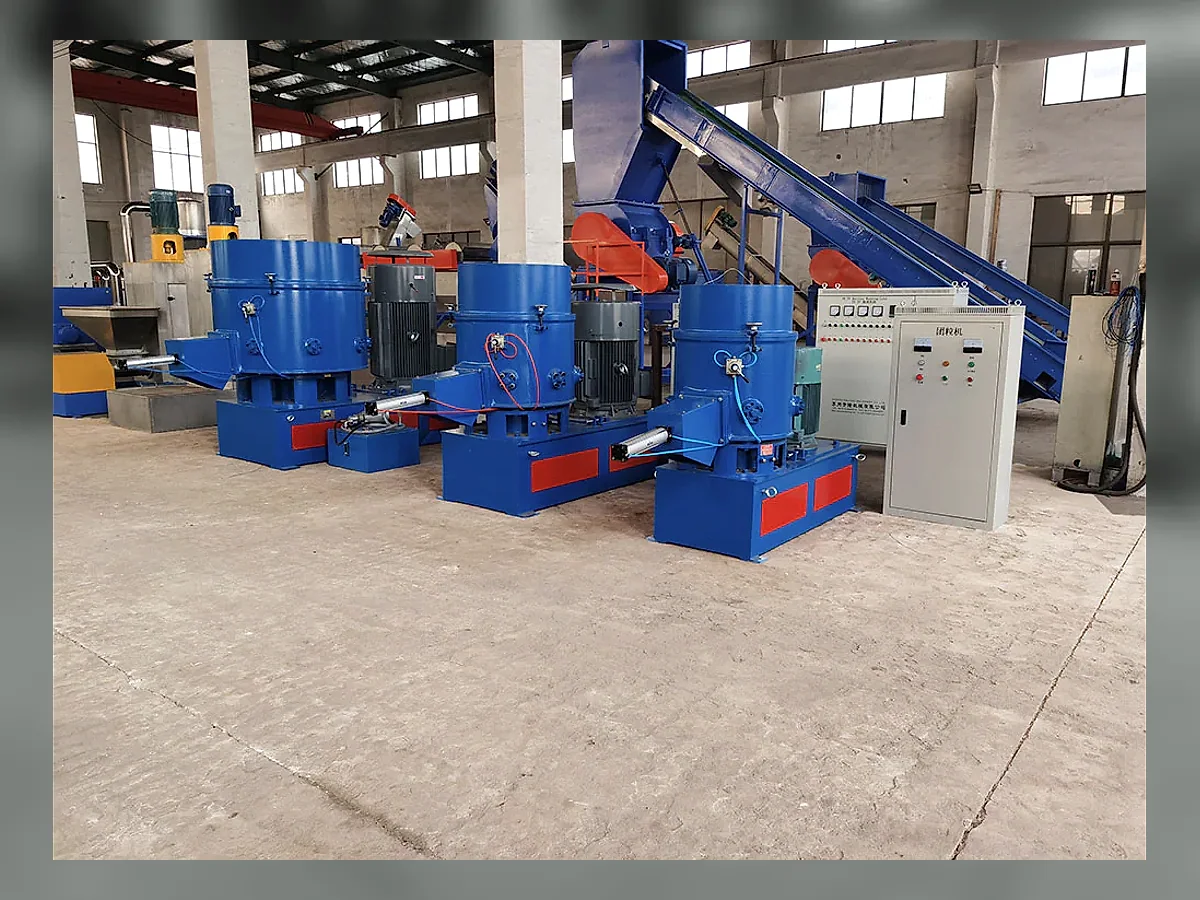

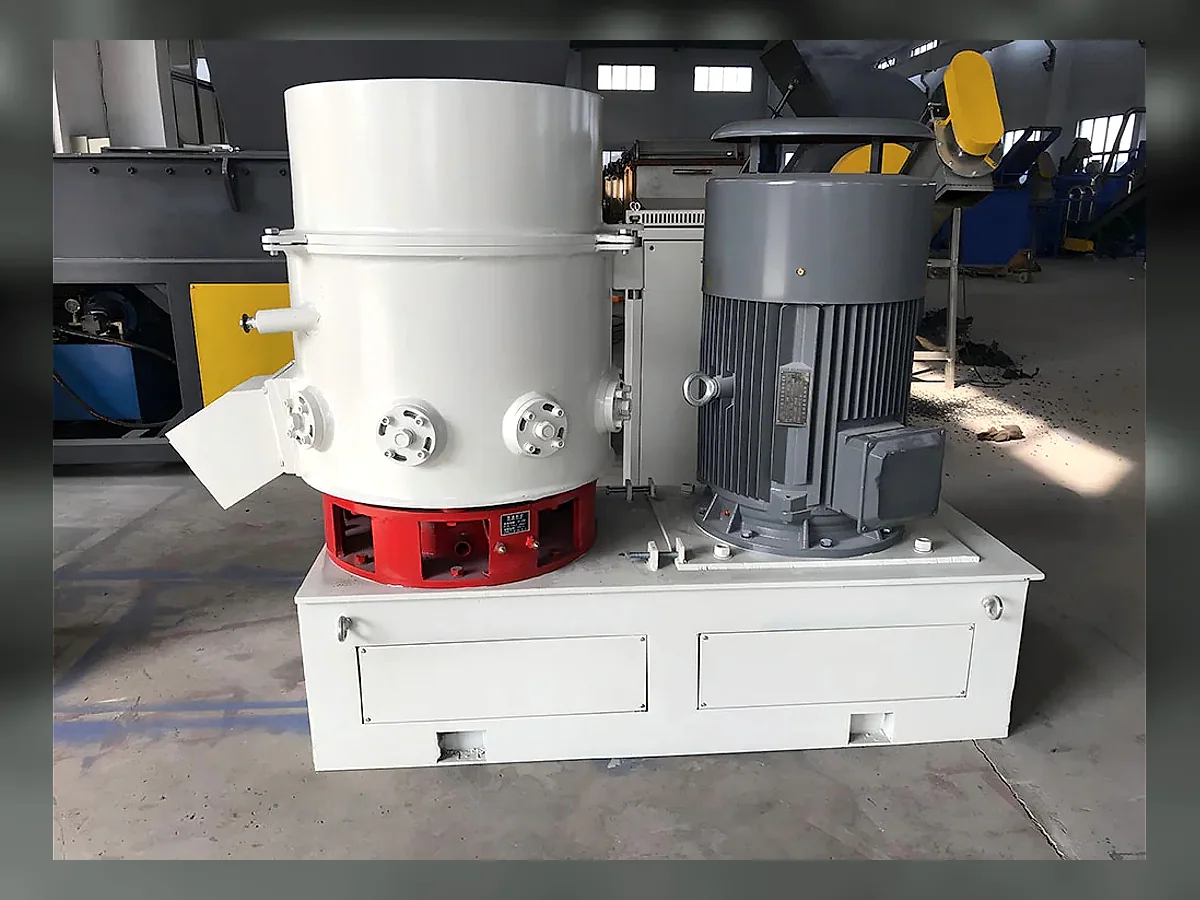

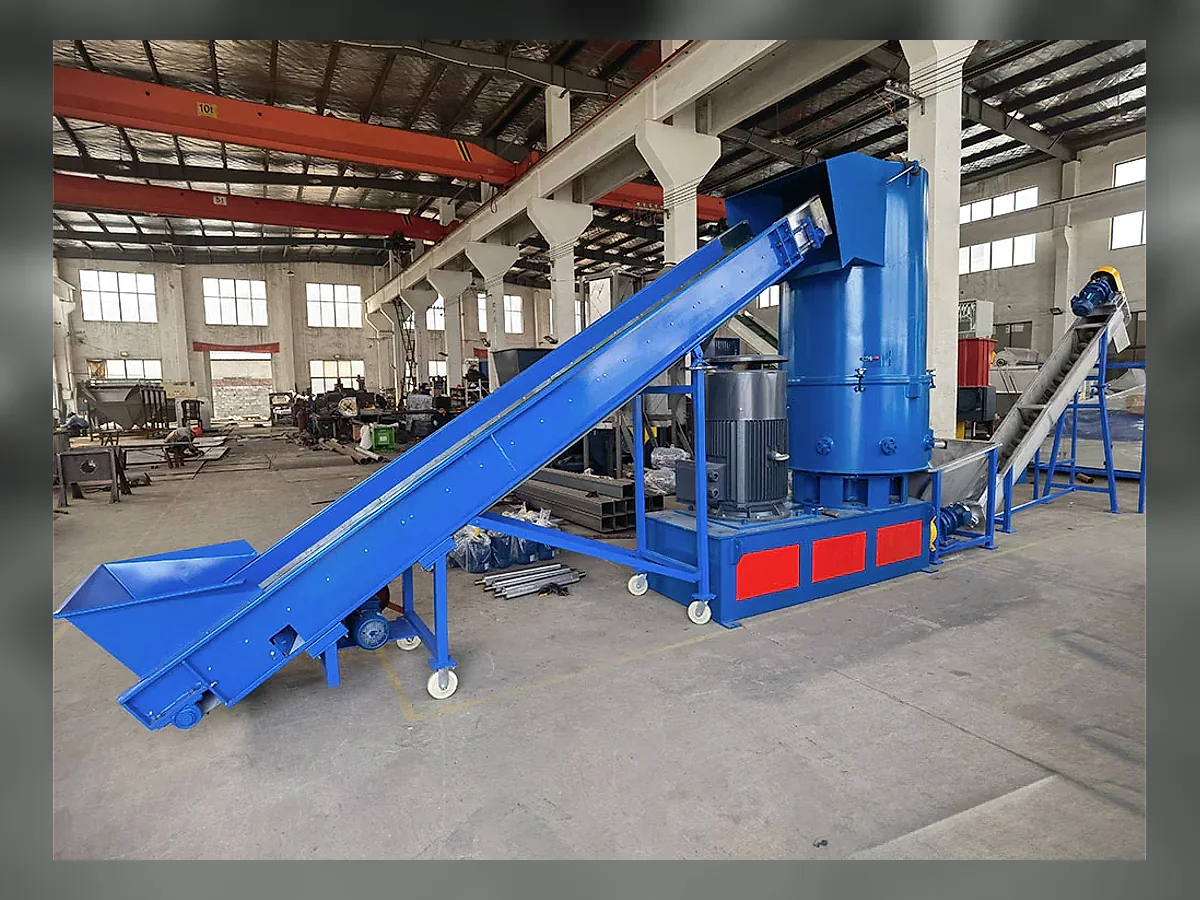

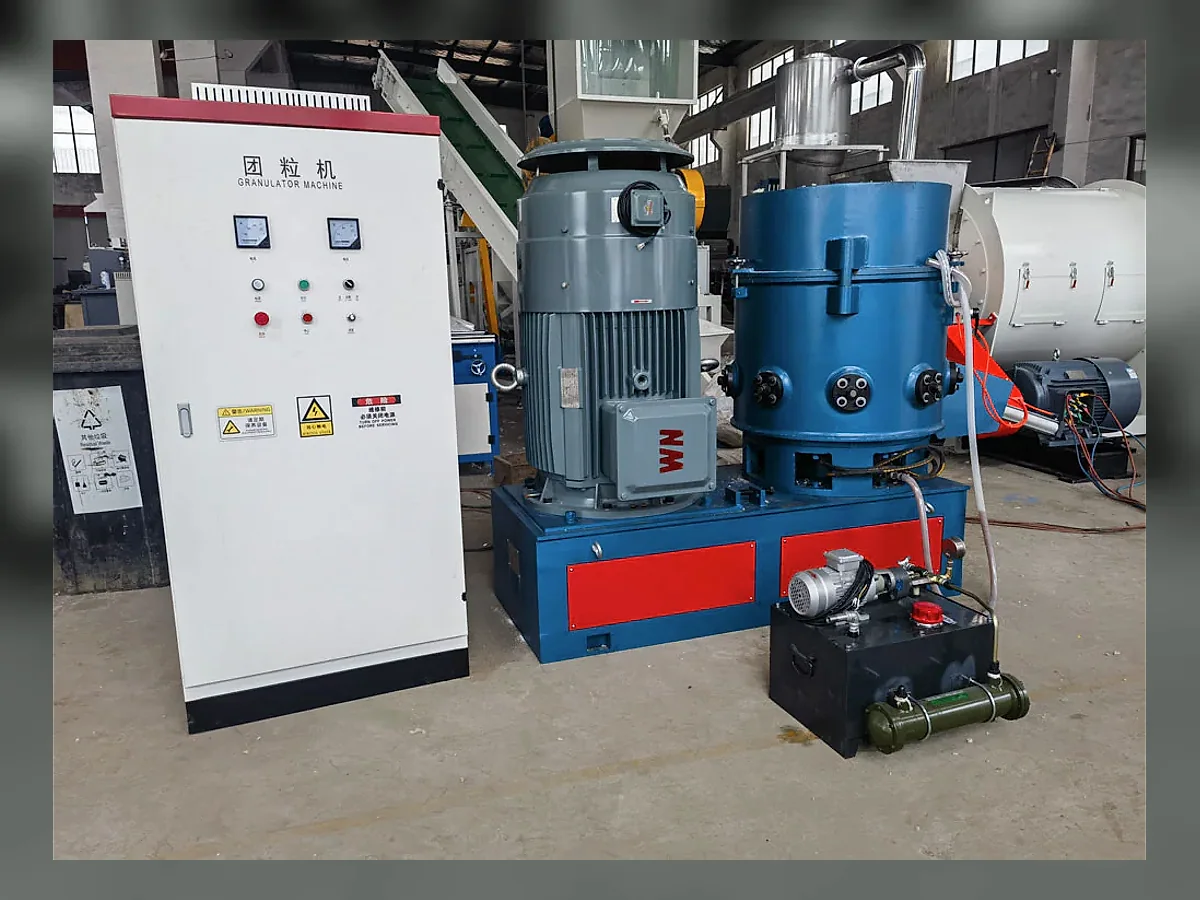

03 — Machine details
Real equipment, shown from useful angles.
Factory photographs retain the machine geometry and working context while using a consistent, presentation-ready frame.
04 — Applications & materials
Where this machine fits.
Applications are based on the materials and duties stated in the original product information.
PE film
Light polyethylene film and bag scrap.
PP film & bags
Flexible polypropylene production or post-use waste.
LDPE & woven sacks
Loose feedstock densified before extrusion.
Next step
Define the right agglomerator for your project.
Share your feedstock, required capacity, and downstream process. Kailong will help match the machine to the actual operating conditions.
Start project inquiry
