Uniform size reduction
Single Shaft Shredder
Uses a single rotor with replaceable cutters and a stationary counter-knife to reduce soft or rigid plastics into consistent pieces.
01 — Working principle
A controlled cutting route to consistent output.
Material is presented to the rotating shaft, where replaceable cutters work against a fixed counter-knife. Repeated shearing creates a controlled output for the next recycling stage.
- 01Feed
Plastic waste is loaded into the machine hopper.
- 02Present
Material is kept in contact with the rotating cutting shaft.
- 03Shear
Rotor cutters work against the stationary counter-knife.
- 04Size
Reduced material exits in a more uniform form.
Built for the task
Focused engineering, clearly explained.

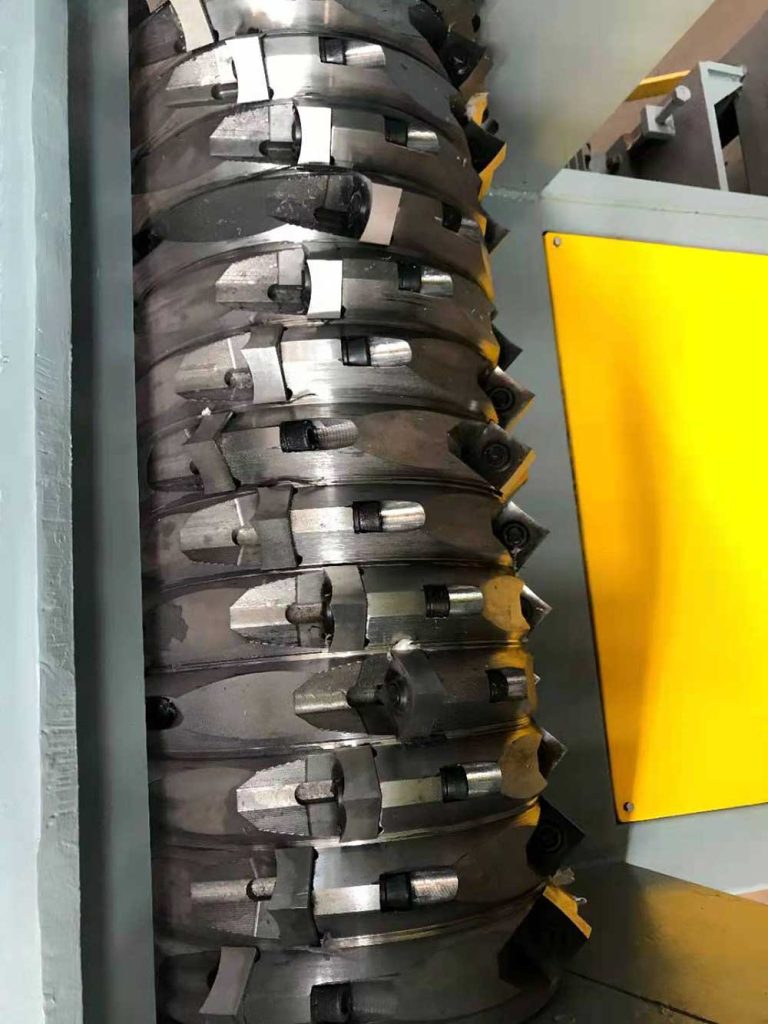

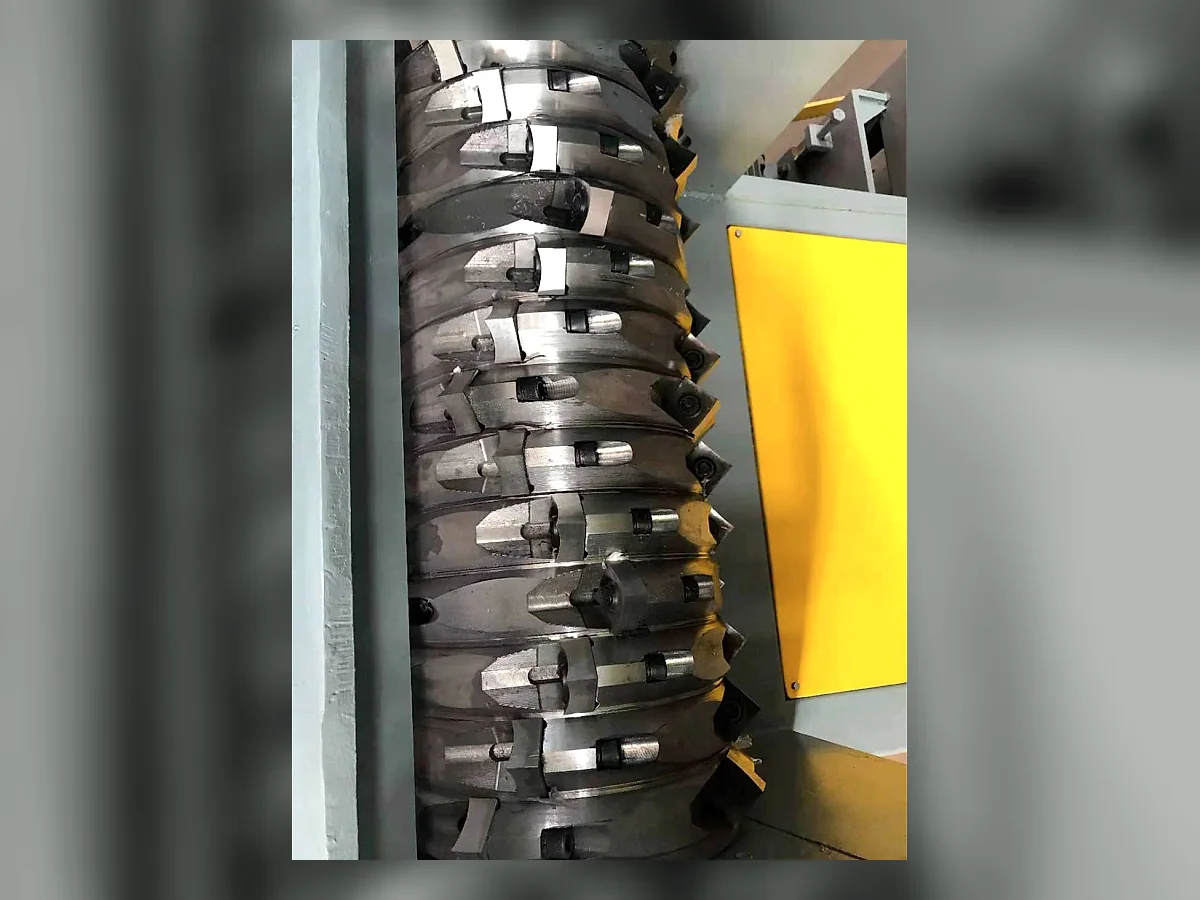

Single rotating cutting shaft
Replaceable cutting blades
Stationary counter-knife
Consistent size reduction
02 — Technical parameters
Compare the available machine sizes.
Use these published models as an initial reference. Final selection depends on the material, input size, and required output.
Request configuration guidance ↗| Model | KL-600 | KL-800 | KL-1000 | KL-1200 | KL-1500 |
|---|---|---|---|---|---|
| Main Motor Power (kW) | 22 / 30 | 37 / 45 | 55 | 75 | 90 |
| Main Motor Power (HP) | 30 / 40 | 50 / 60 | 75 | 100 | 120 |
| Main Shaft Length (mm) | 600 | 800 | 1000 | 1200 | 1500 |
| Rotor Diameter (mm) | 260 | 400 | 400 | 400 | 400 |
| Stator Blade (pcs) | 1 | 2 | 2 | 2 | 2 |
| Rotor Blade (pcs) | 30 | 52 | 68 | 76 | 96 |
| Screen Mesh Diameter (mm) | 30–80 | 30–80 | 30–80 | 30–80 | 30–80 |
| Hydraulic Power (kW) | 2.2 | 3 | 4 | 5.5 | 5.5 |
| Hydraulic Cylinder Stroke (mm) | 500 | 950 | 950 | 950 | 950 |
| Dimensions (m) | 2×1.1×2.2 | 3.1×1.7×2.2 | 3.1×1.9×2.2 | 3.1×2.1×2.4 | 3.1×2.4×2.4 |
| Capacity (kg/hr) | 400 | 800 | 1000 | 1200 | 1500 |
Published values are reference data. Final specifications depend on the selected configuration and project conditions.
Main Motor Power (kW)
- KL-600
- 22 / 30
- KL-800
- 37 / 45
- KL-1000
- 55
- KL-1200
- 75
- KL-1500
- 90
Main Motor Power (HP)
- KL-600
- 30 / 40
- KL-800
- 50 / 60
- KL-1000
- 75
- KL-1200
- 100
- KL-1500
- 120
Main Shaft Length (mm)
- KL-600
- 600
- KL-800
- 800
- KL-1000
- 1000
- KL-1200
- 1200
- KL-1500
- 1500
Rotor Diameter (mm)
- KL-600
- 260
- KL-800
- 400
- KL-1000
- 400
- KL-1200
- 400
- KL-1500
- 400
Stator Blade (pcs)
- KL-600
- 1
- KL-800
- 2
- KL-1000
- 2
- KL-1200
- 2
- KL-1500
- 2
Rotor Blade (pcs)
- KL-600
- 30
- KL-800
- 52
- KL-1000
- 68
- KL-1200
- 76
- KL-1500
- 96
Screen Mesh Diameter (mm)
- KL-600
- 30–80
- KL-800
- 30–80
- KL-1000
- 30–80
- KL-1200
- 30–80
- KL-1500
- 30–80
Hydraulic Power (kW)
- KL-600
- 2.2
- KL-800
- 3
- KL-1000
- 4
- KL-1200
- 5.5
- KL-1500
- 5.5
Hydraulic Cylinder Stroke (mm)
- KL-600
- 500
- KL-800
- 950
- KL-1000
- 950
- KL-1200
- 950
- KL-1500
- 950
Dimensions (m)
- KL-600
- 2×1.1×2.2
- KL-800
- 3.1×1.7×2.2
- KL-1000
- 3.1×1.9×2.2
- KL-1200
- 3.1×2.1×2.4
- KL-1500
- 3.1×2.4×2.4
Capacity (kg/hr)
- KL-600
- 400
- KL-800
- 800
- KL-1000
- 1000
- KL-1200
- 1200
- KL-1500
- 1500

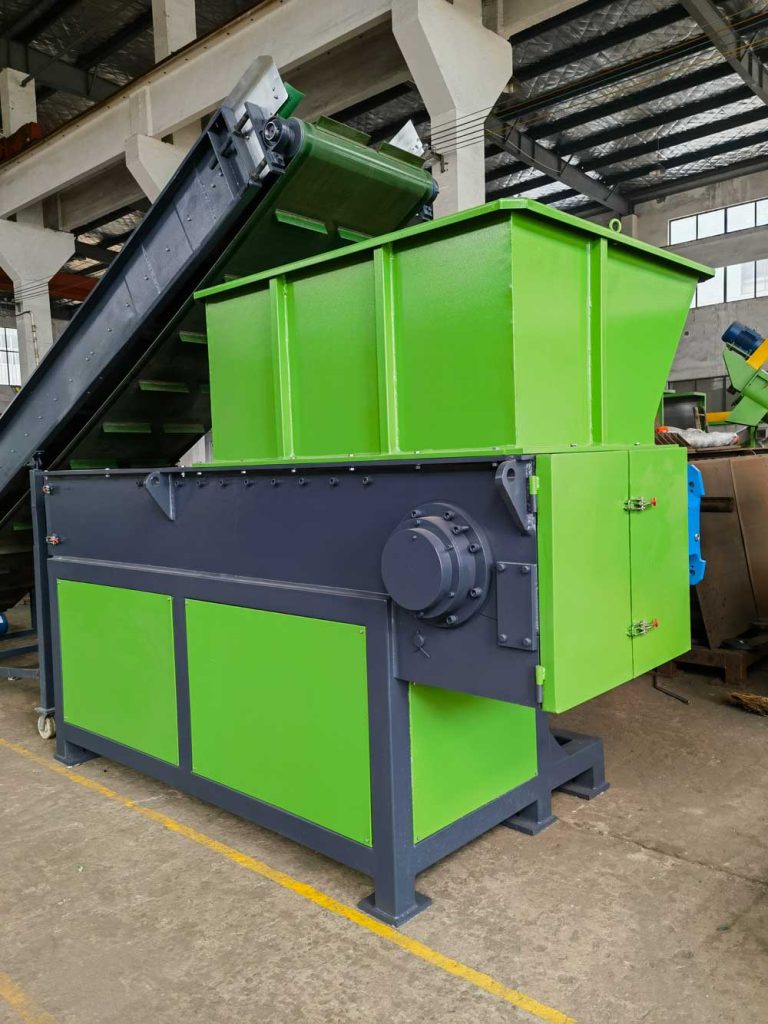

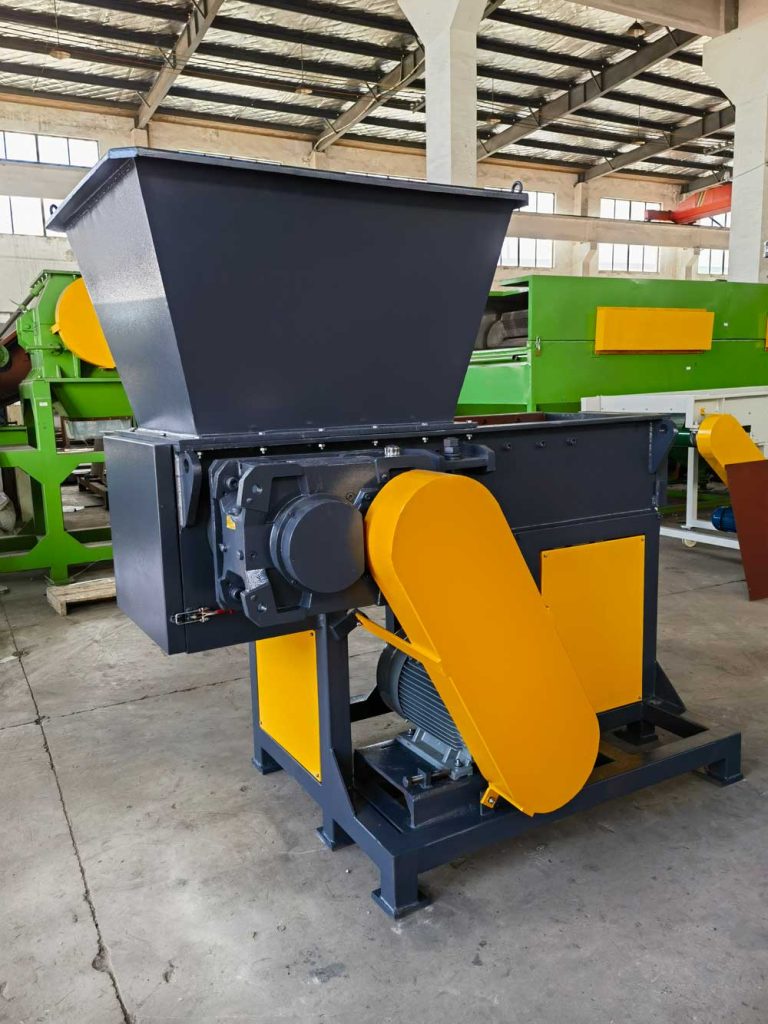

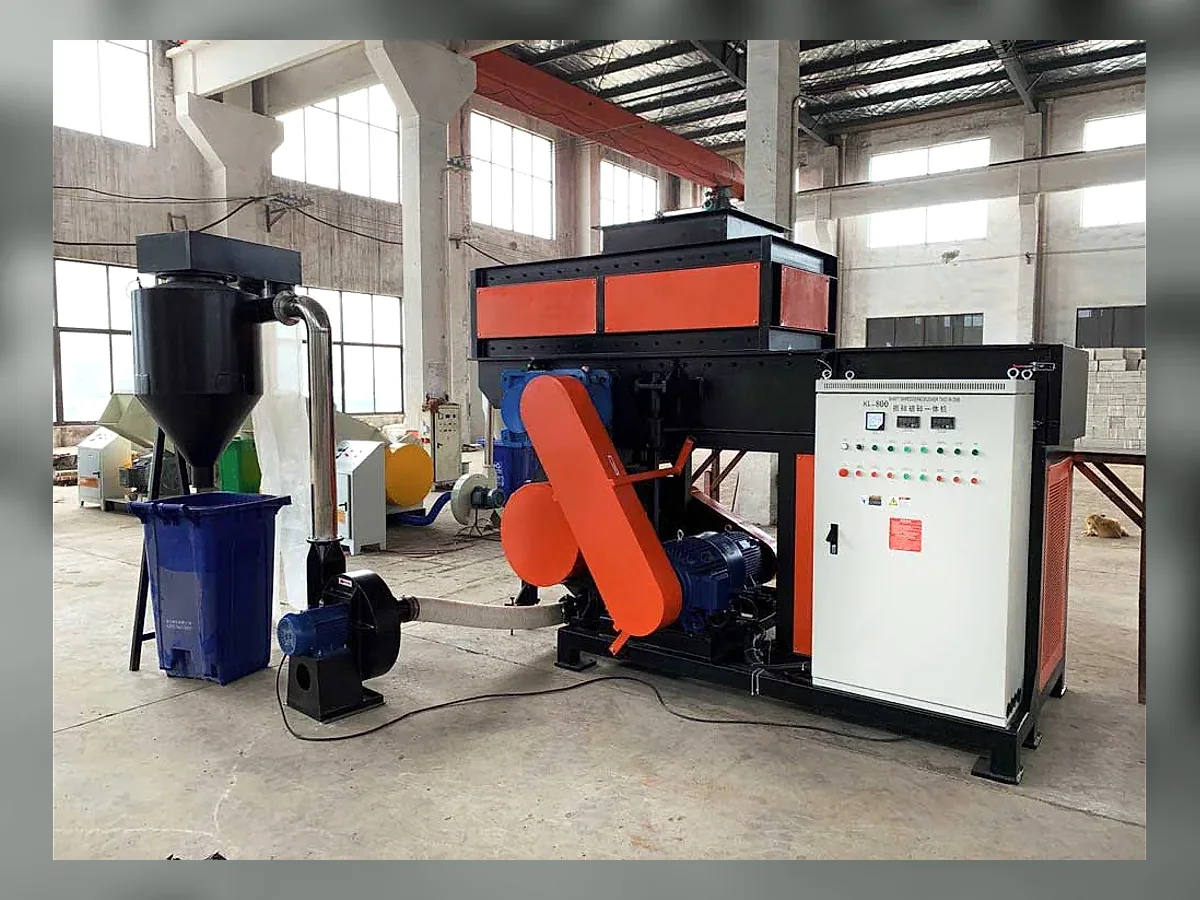

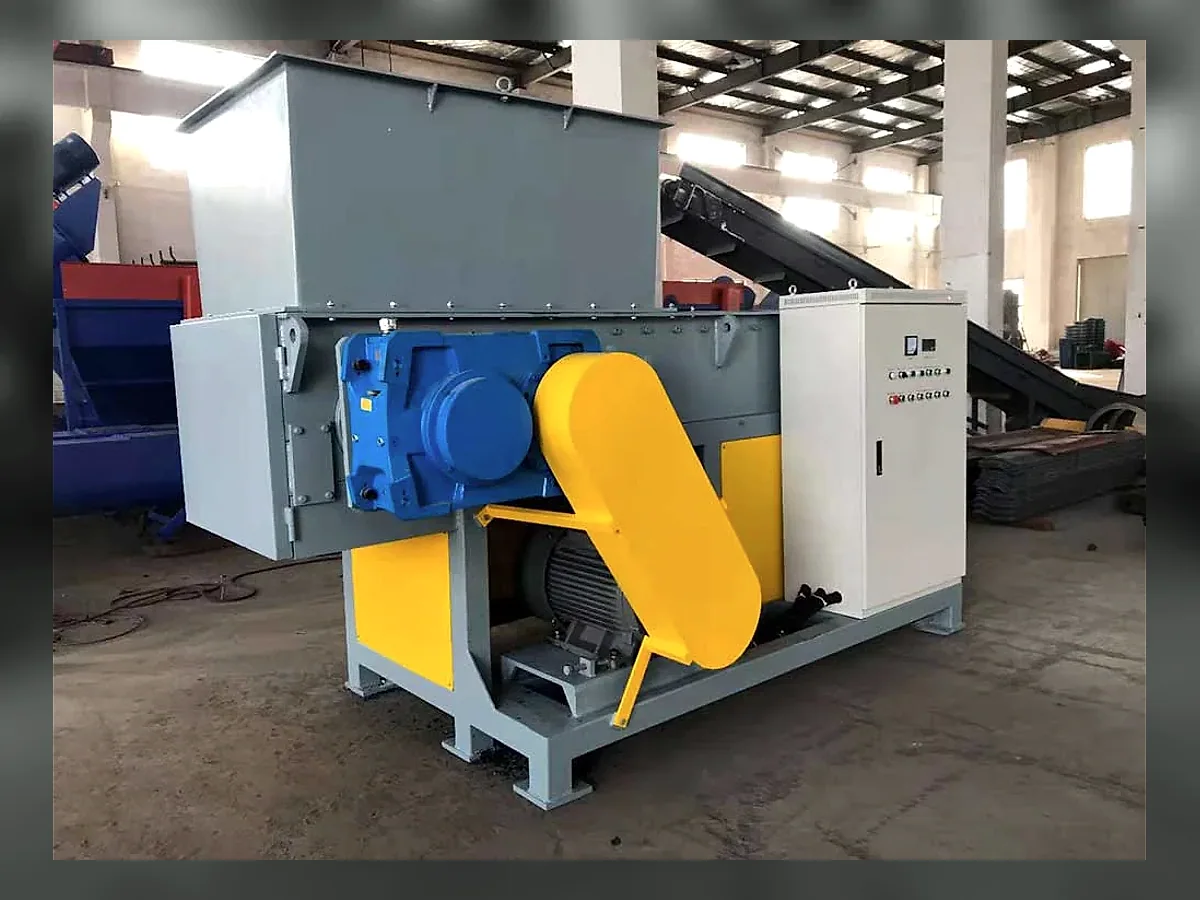

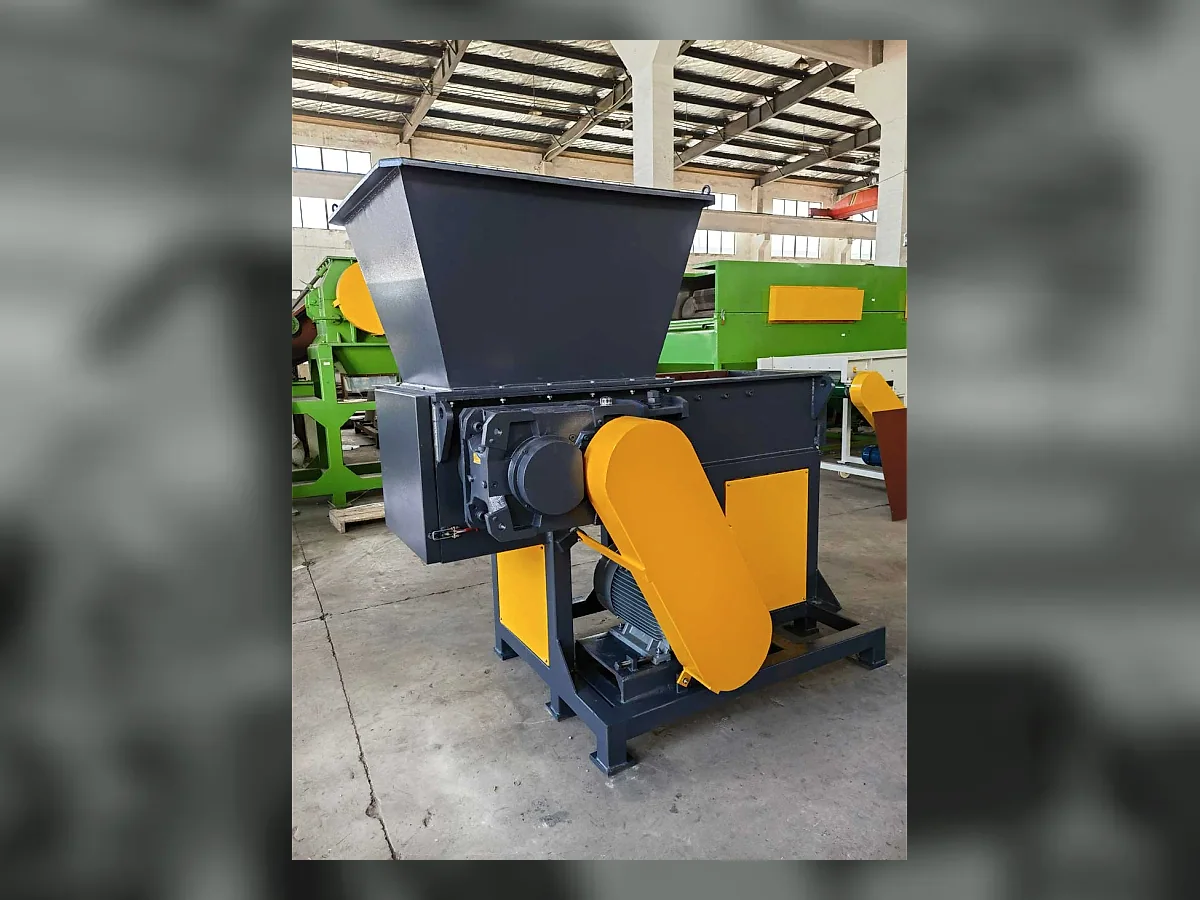

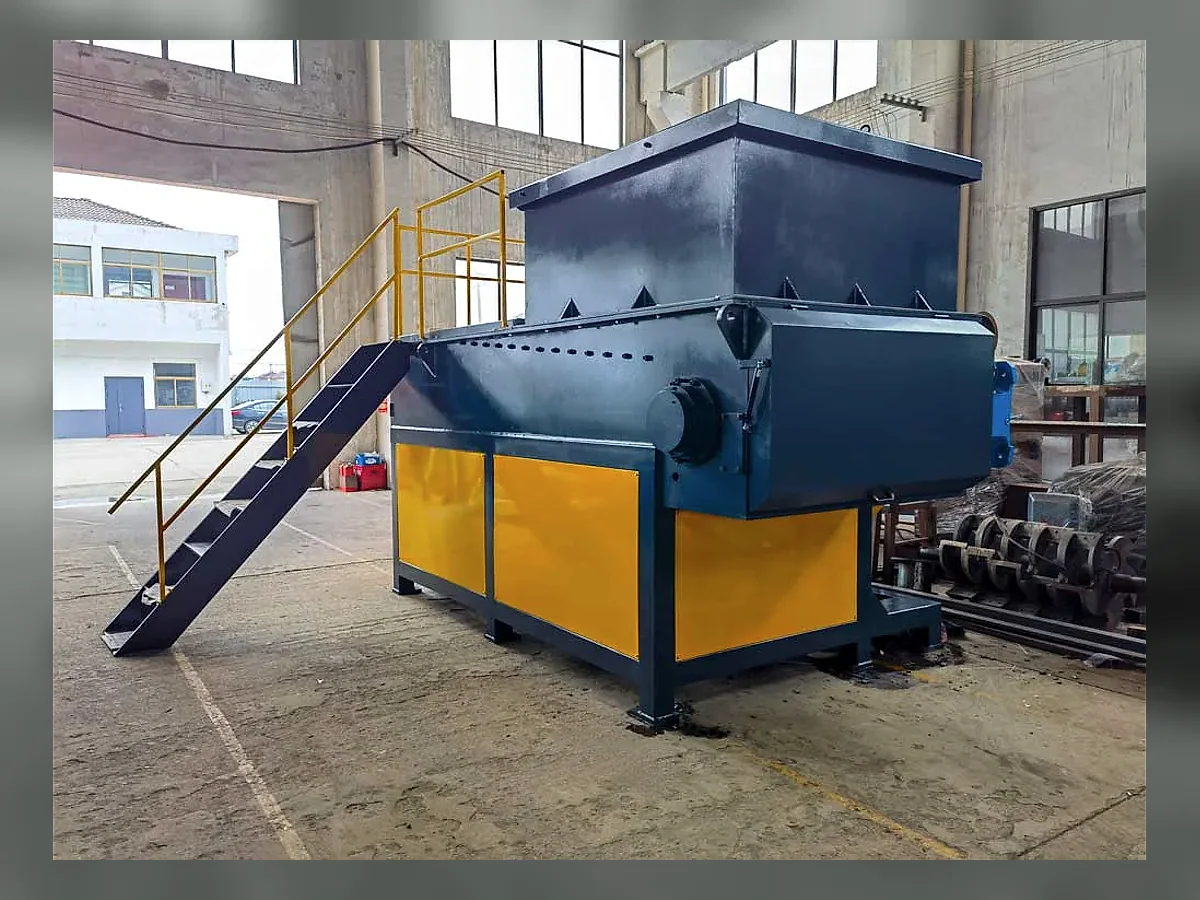

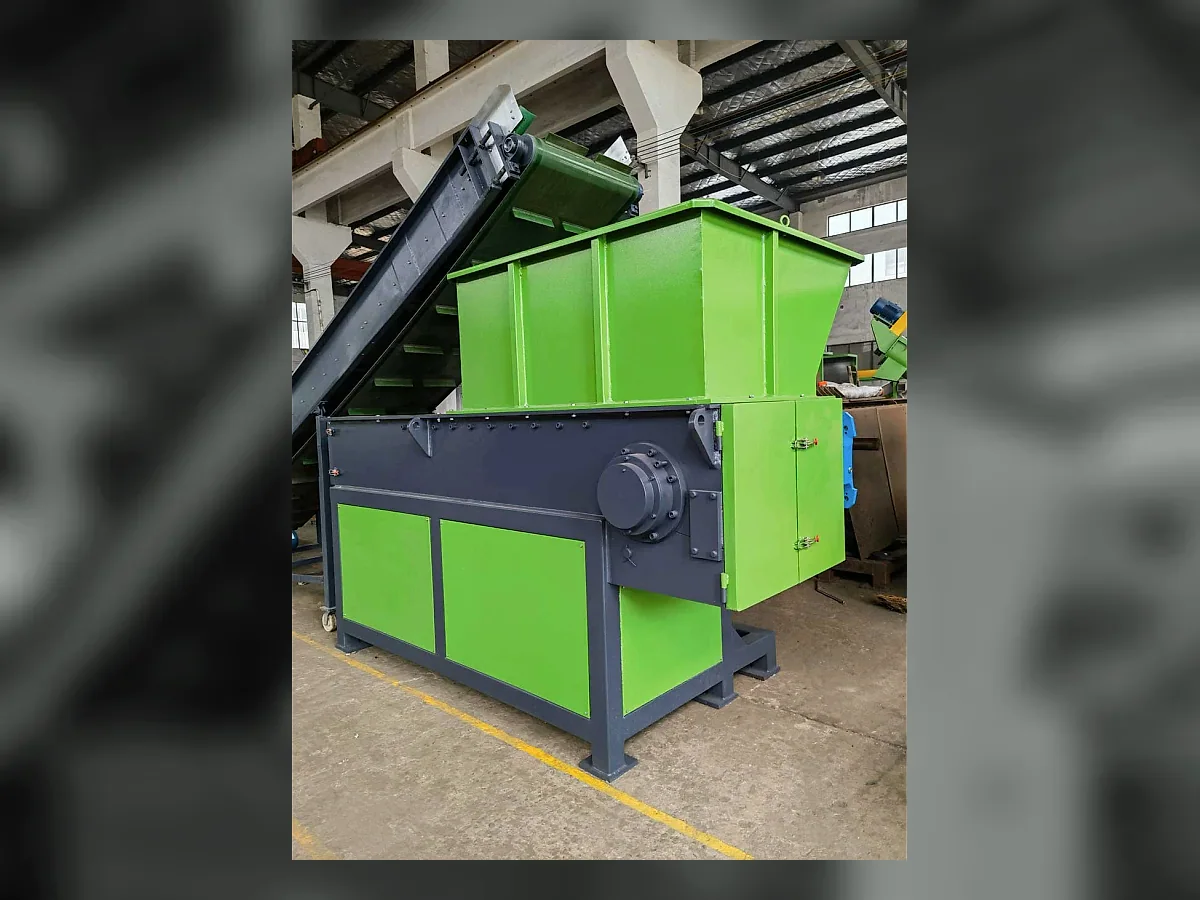

03 — Machine details
Real equipment, shown from useful angles.
Factory photographs retain the machine geometry and working context while using a consistent, presentation-ready frame.
04 — Applications & materials
Where this machine fits.
Applications are based on the materials and duties stated in the original product information.
PE & PP
Flexible and rigid polyolefin waste.
PVC
Suitable PVC feedstock prepared for downstream processing.
ABS & rigid plastics
Industrial rigid-plastic waste and production scrap.
Next step
Define the right shredder for your project.
Share your feedstock, required capacity, and downstream process. Kailong will help match the machine to the actual operating conditions.
Start project inquiry
