Wet or dry granulation
Plastic Crusher
Cuts PE/PP film, woven bags, and rigid plastic containers into small, uniform flakes for efficient washing and drying.
01 — Working principle
Clean cutting that prepares material for washing.

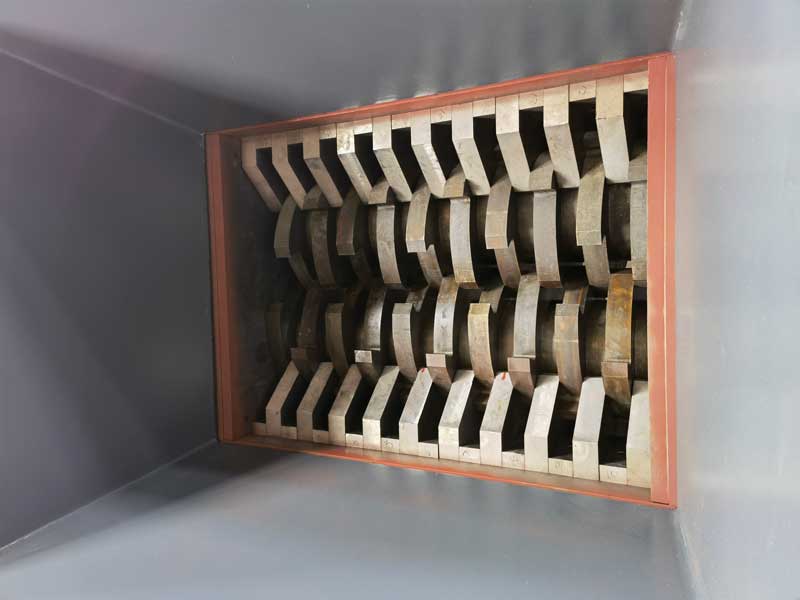

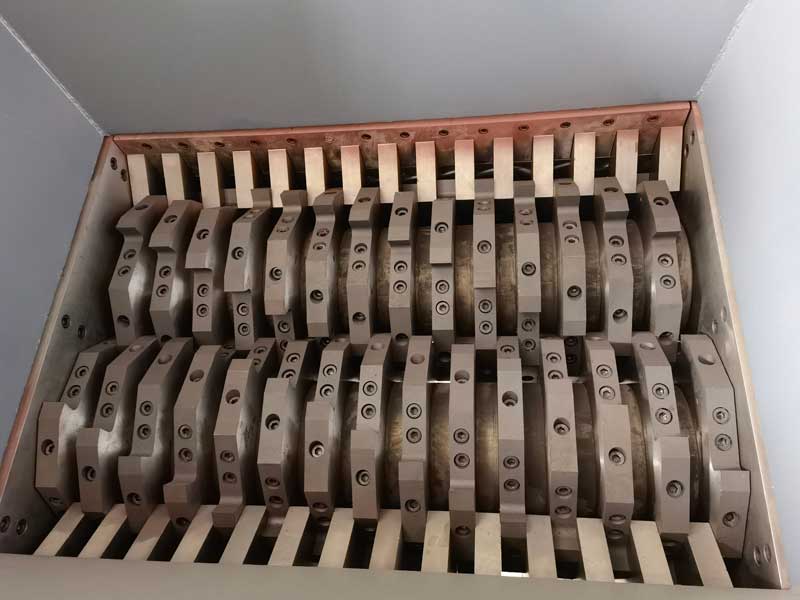

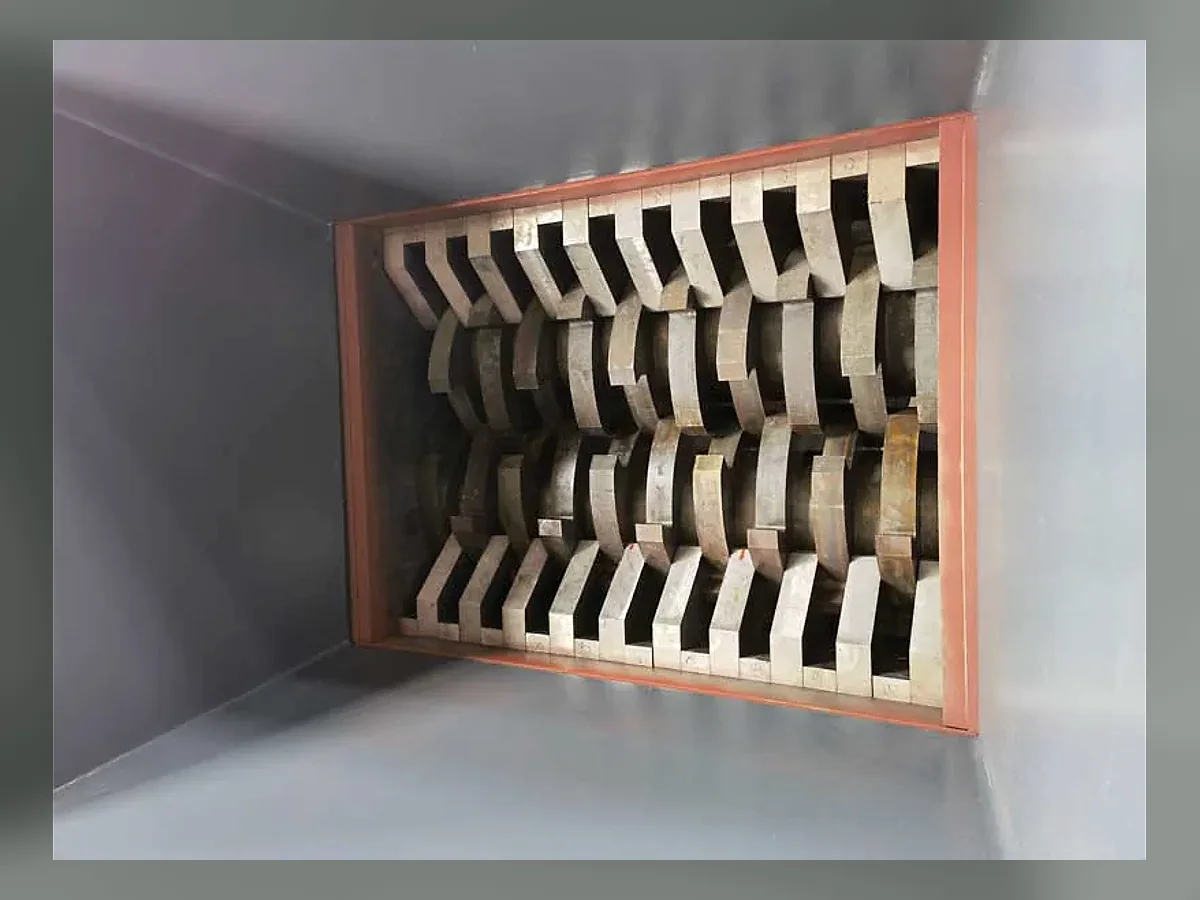

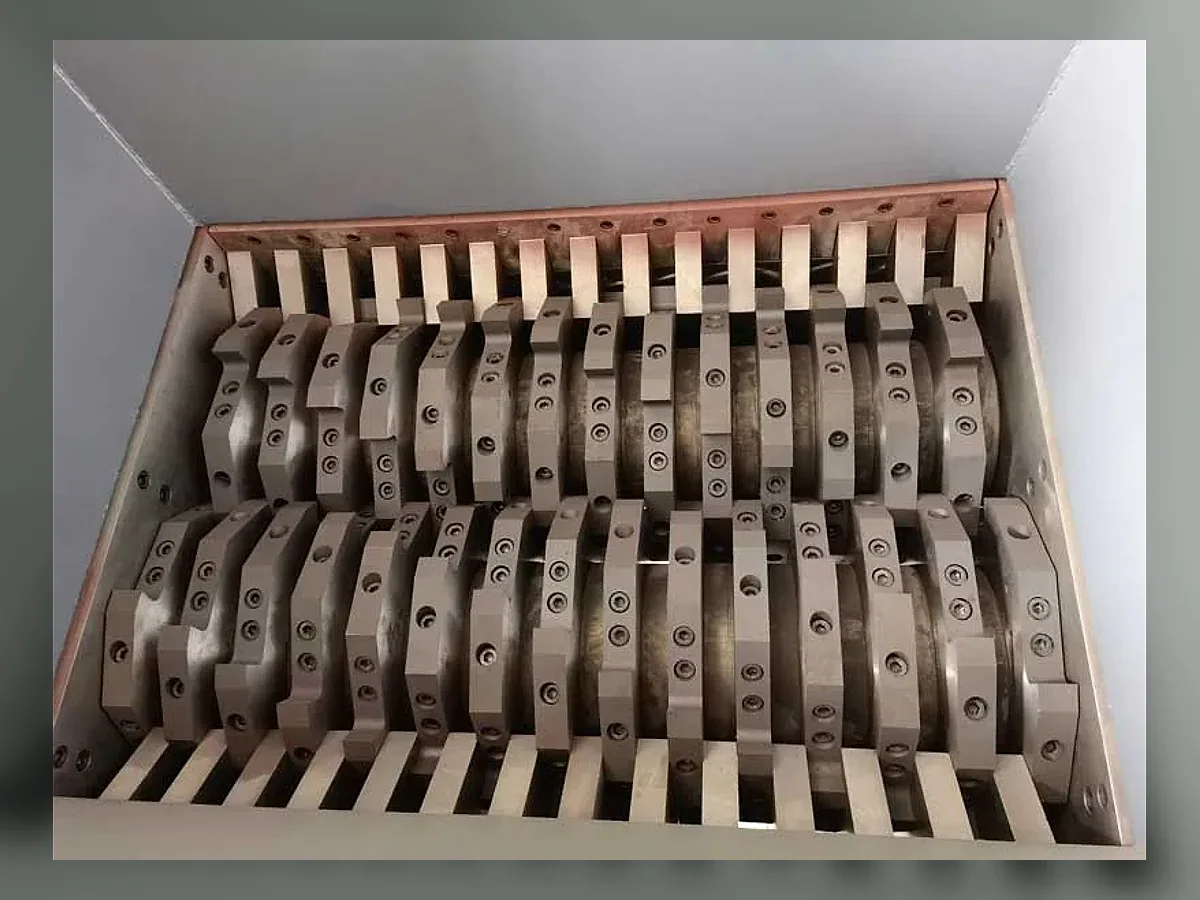

High-strength alloy blades cut the plastic into flakes. Water-assisted operation can cool the cutting chamber, reduce dust, and help prevent material from melting during processing.
- 01Feed
Film or rigid plastic enters the cutting chamber.
- 02Cut
Alloy blades reduce the material into smaller flakes.
- 03Cool
Water-assisted cutting limits dust and heat when required.
- 04Transfer
Uniform flakes move forward to washing and drying.
Built for the task
Focused engineering, clearly explained.
High-strength alloy blades
Water-assisted cutting option
Reduced dust and blade heat
Film and rigid-plastic capacities
02 — Technical parameters
Compare the available machine sizes.
Use these published models as an initial reference. Final selection depends on the material, input size, and required output.
Request configuration guidance ↗| Model | Film Capacity (kg/hr) | Hard Plastic Capacity (kg/hr) | Installed Power (kW) |
|---|---|---|---|
| KL-600 | 200 | 400 | 30 / 37 |
| KL-800 | 300 | 600 | 55 |
| KL-1000 | 500 | 1000 | 75 |
| KL-1200 | 800 | 1500 | 90 |
| KL-1500 | 1000 | 2000 | 110 |
Published values are reference data. Final specifications depend on the selected configuration and project conditions.
KL-600
- Film Capacity (kg/hr)
- 200
- Hard Plastic Capacity (kg/hr)
- 400
- Installed Power (kW)
- 30 / 37
KL-800
- Film Capacity (kg/hr)
- 300
- Hard Plastic Capacity (kg/hr)
- 600
- Installed Power (kW)
- 55
KL-1000
- Film Capacity (kg/hr)
- 500
- Hard Plastic Capacity (kg/hr)
- 1000
- Installed Power (kW)
- 75
KL-1200
- Film Capacity (kg/hr)
- 800
- Hard Plastic Capacity (kg/hr)
- 1500
- Installed Power (kW)
- 90
KL-1500
- Film Capacity (kg/hr)
- 1000
- Hard Plastic Capacity (kg/hr)
- 2000
- Installed Power (kW)
- 110

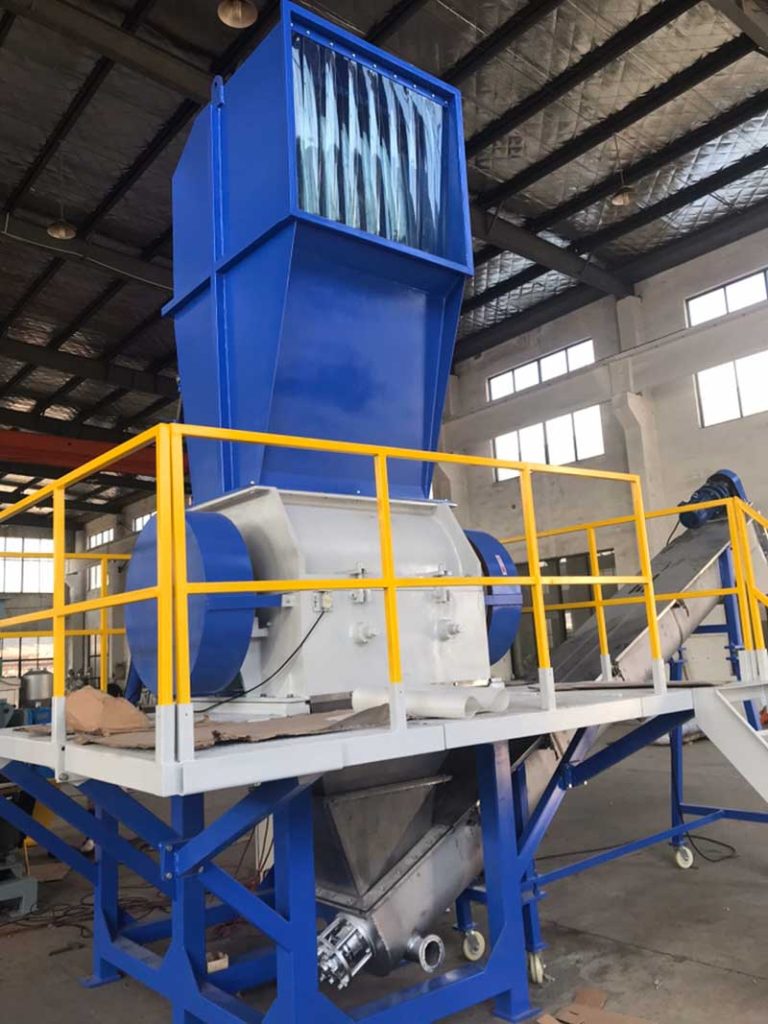

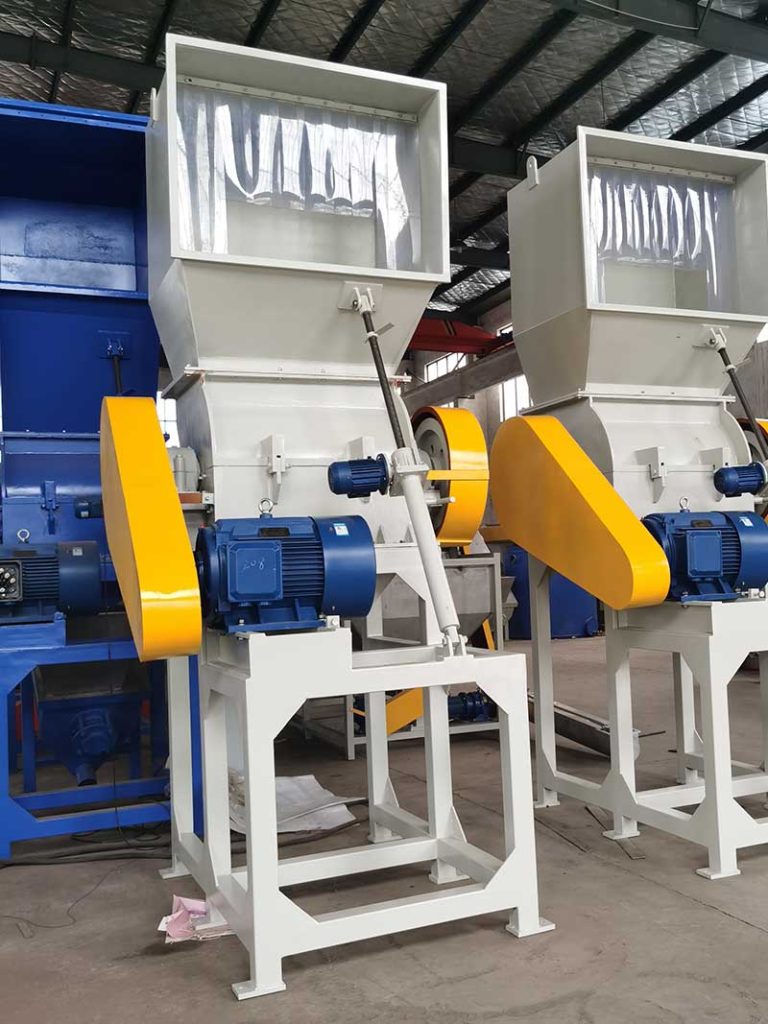

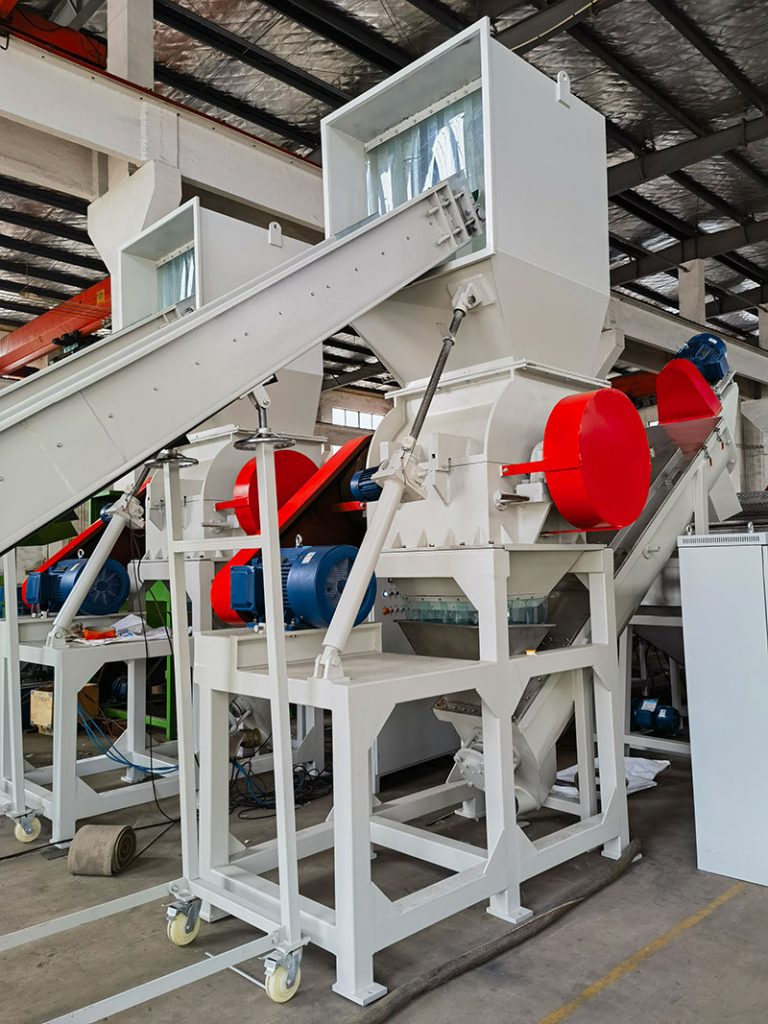

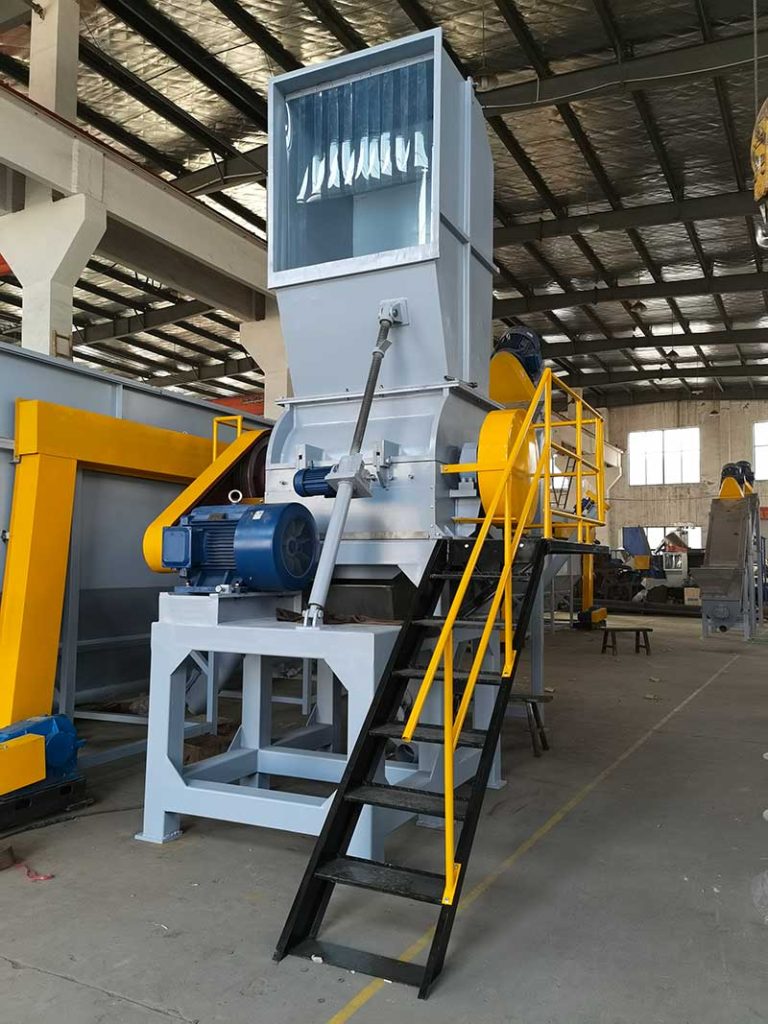

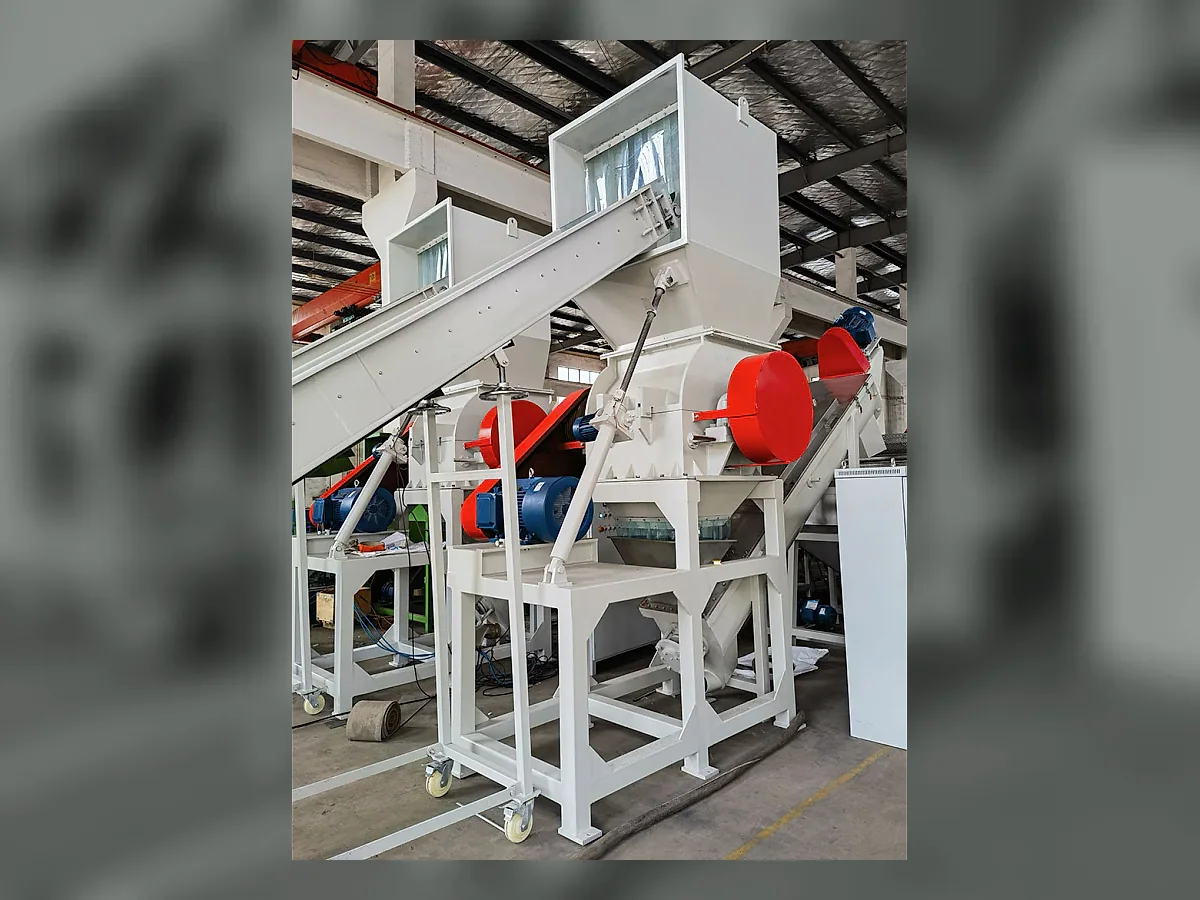

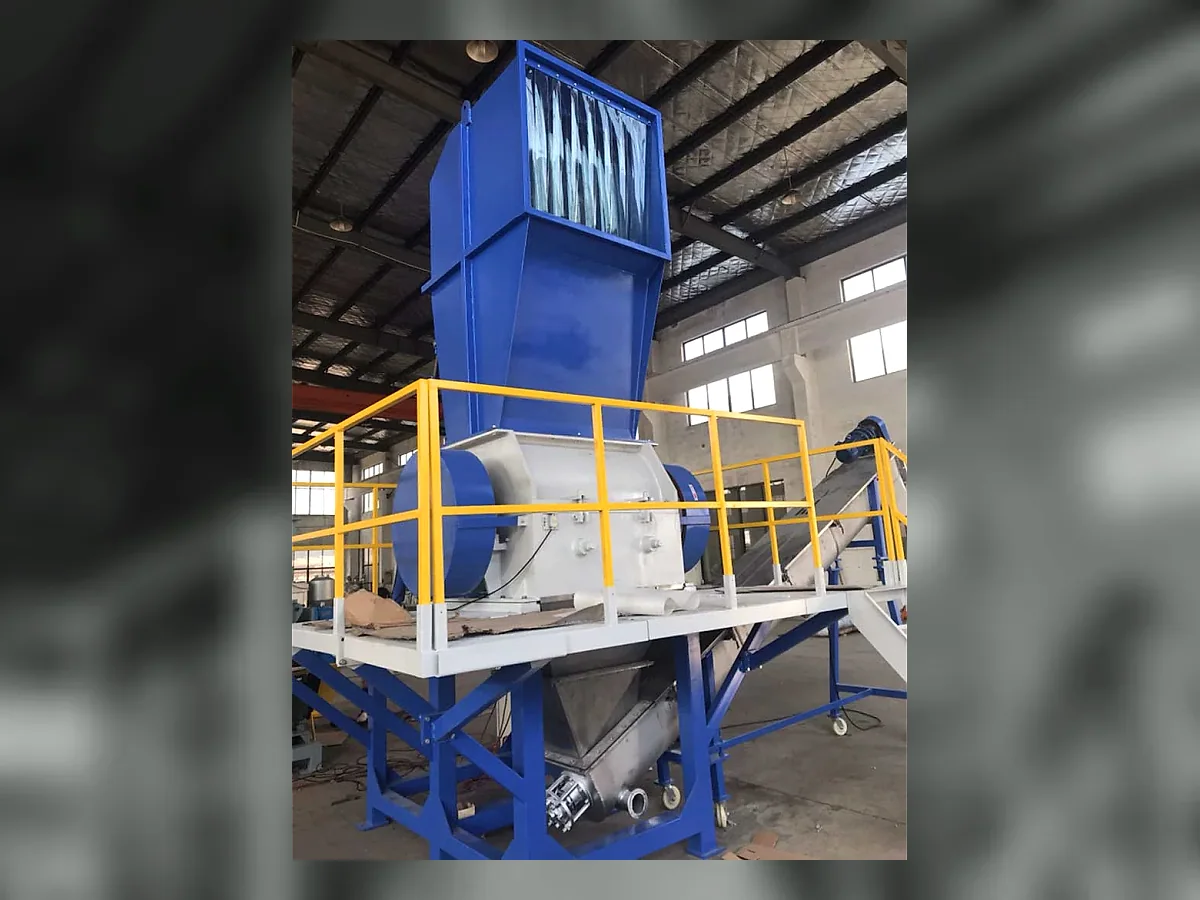

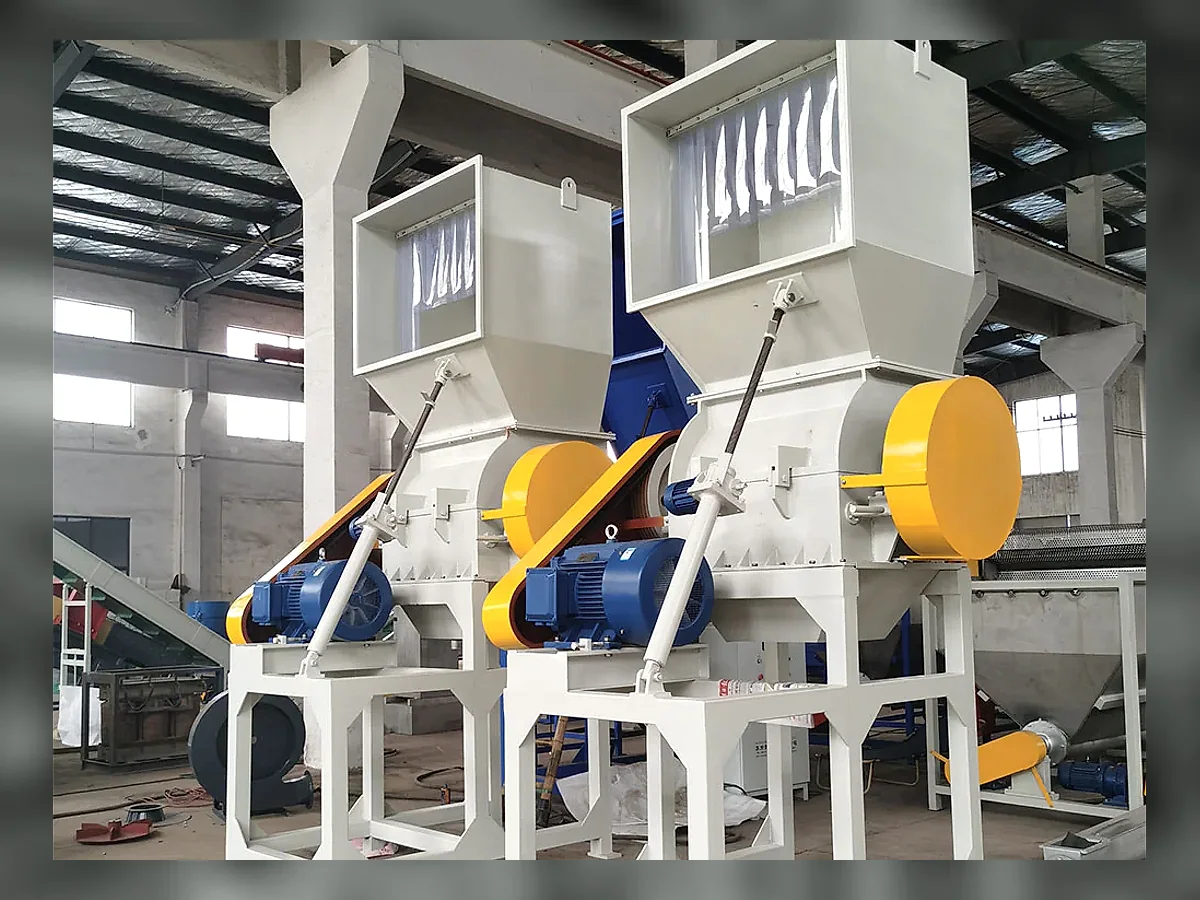

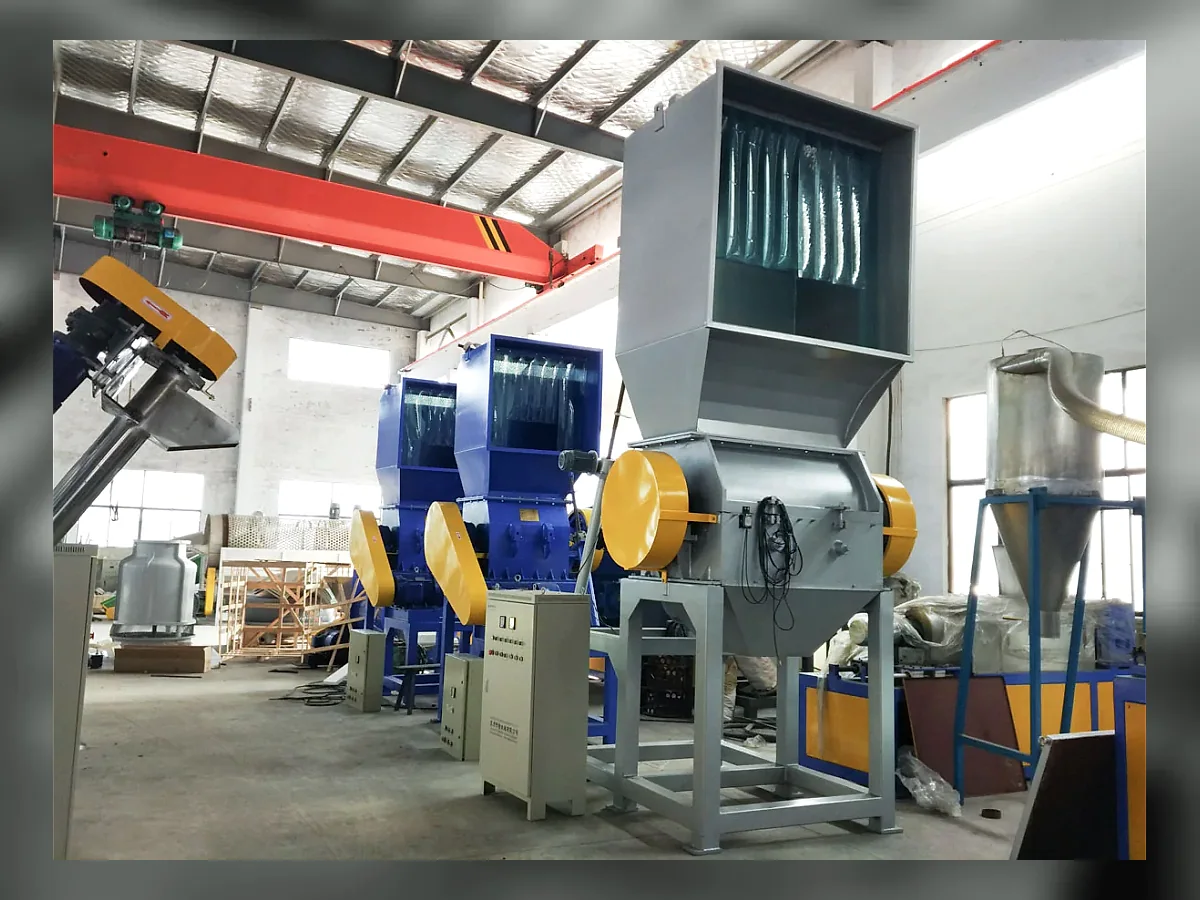

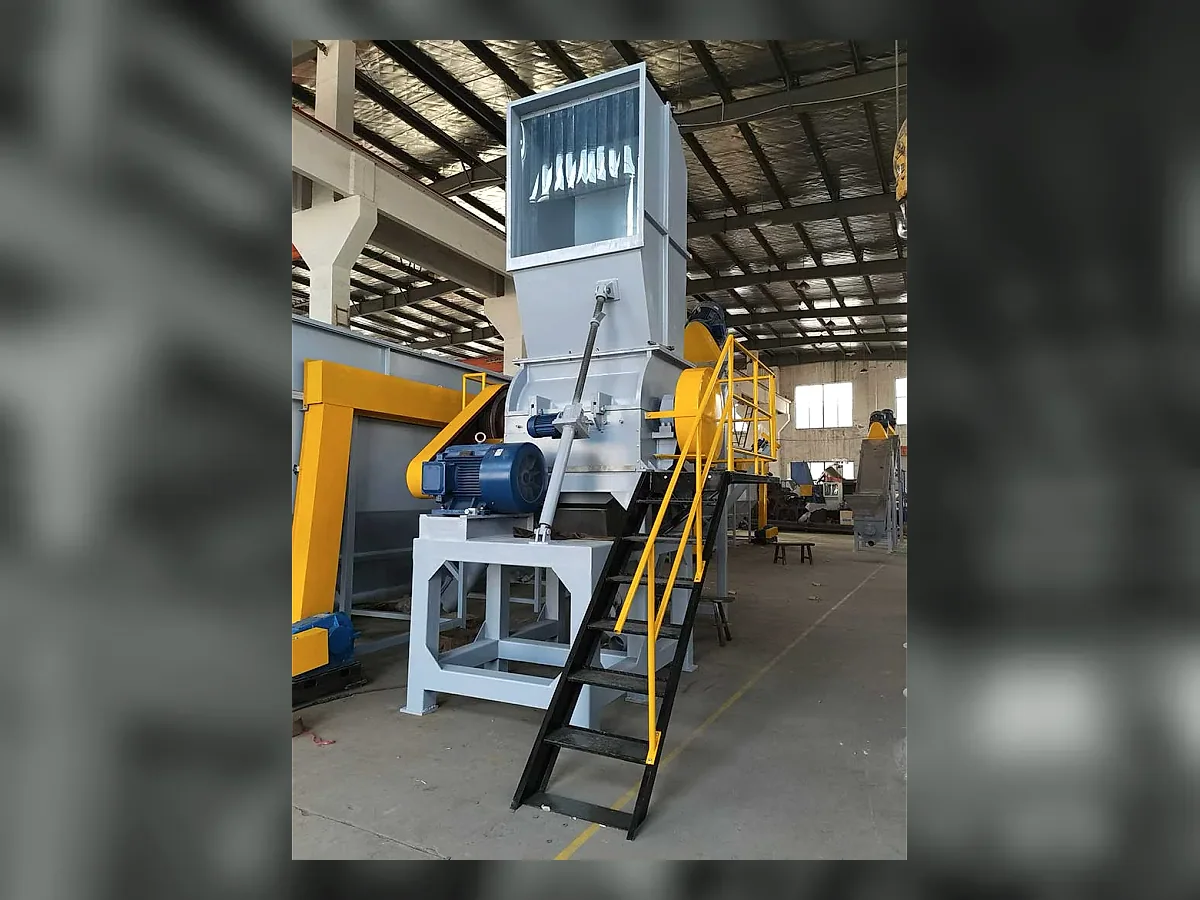

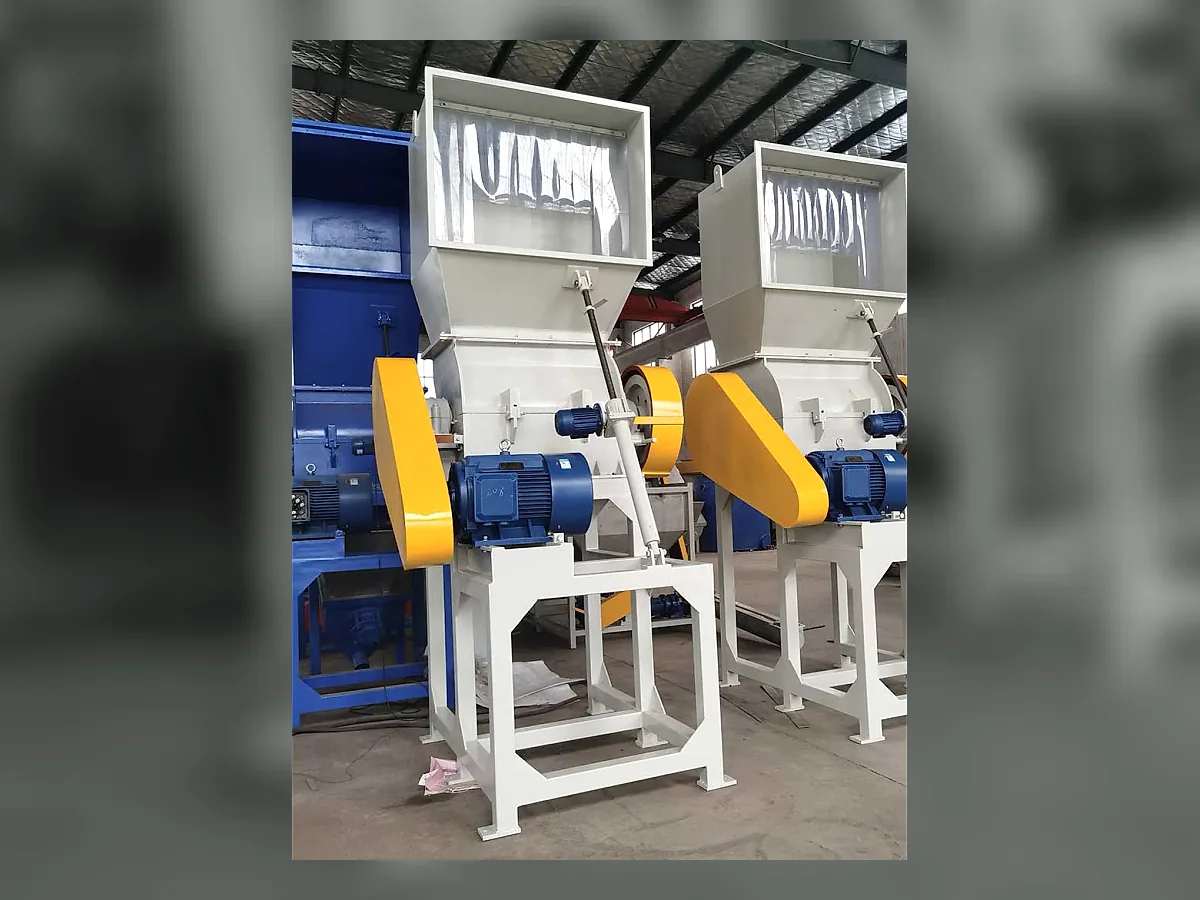

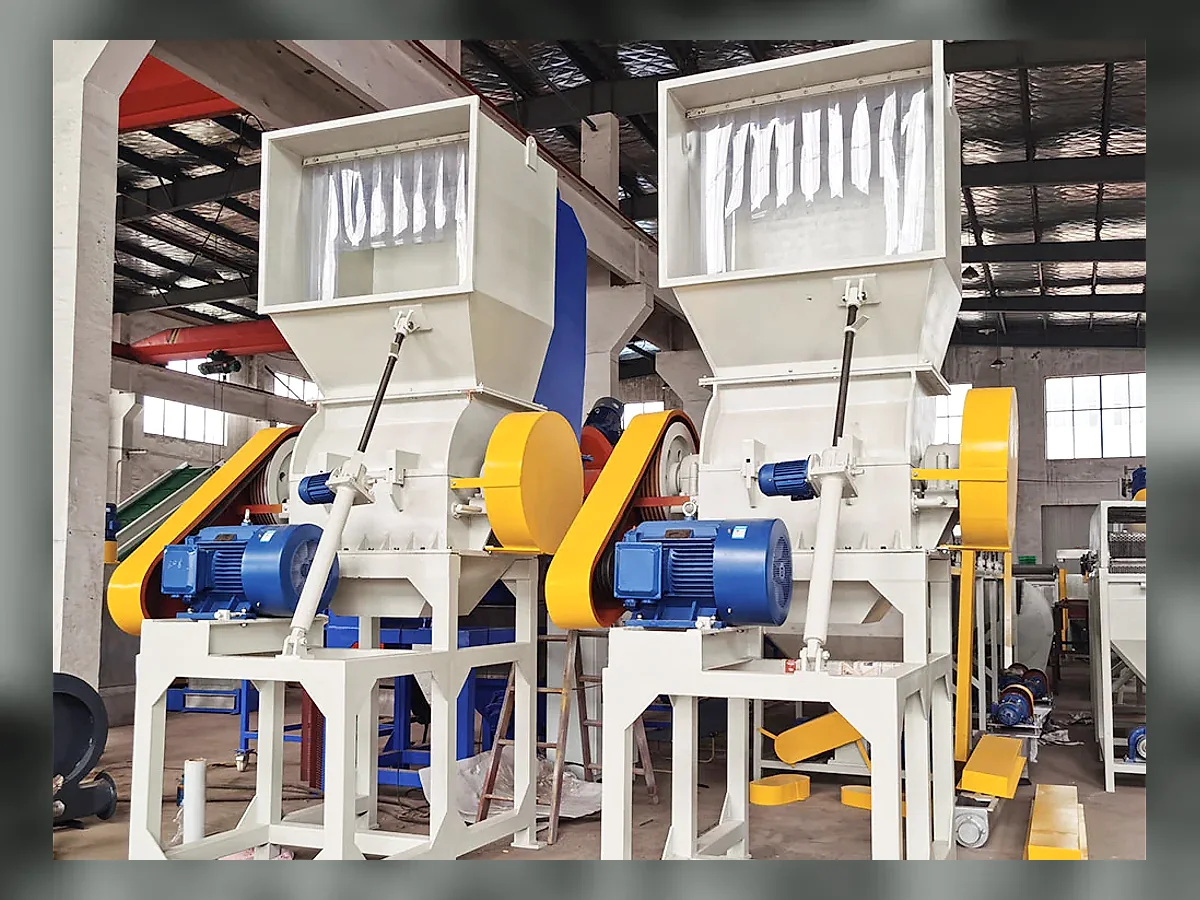

03 — Machine details
Real equipment, shown from useful angles.
Factory photographs retain the machine geometry and working context while using a consistent, presentation-ready frame.
04 — Applications & materials
Where this machine fits.
Applications are based on the materials and duties stated in the original product information.
PE/PP film
Flexible film prepared for intensive washing.
Woven bags
Woven feedstock reduced into washable pieces.
Rigid containers
Bottles, crates, and containers cut into uniform flakes.
Next step
Define the right crusher for your project.
Share your feedstock, required capacity, and downstream process. Kailong will help match the machine to the actual operating conditions.
